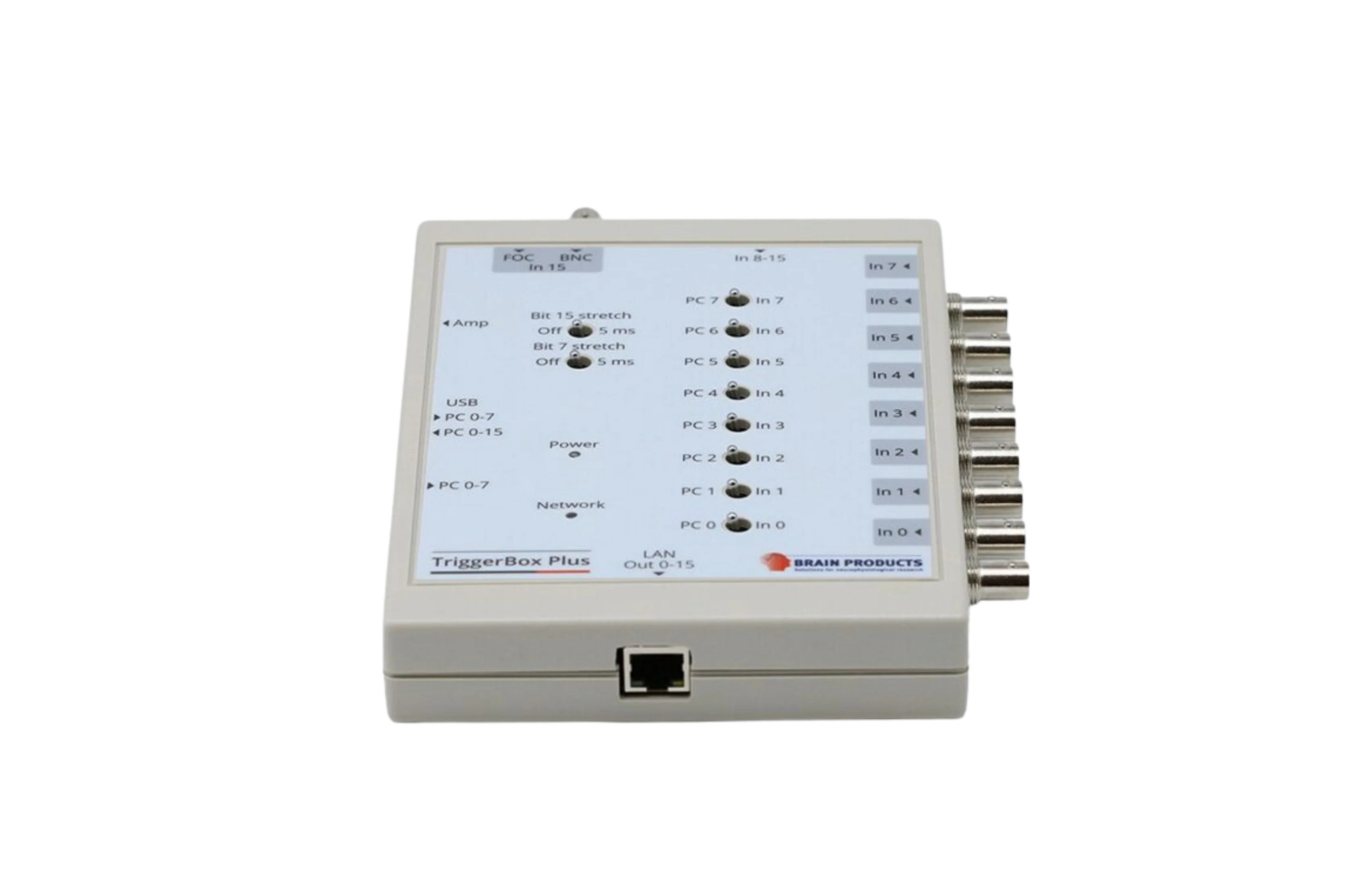

TriggerBox Plus
Trigger management accessory for combining and routing event markers from multiple experimental devices. Supports parallel, BNC, fiber optic, and LSL-based trigger integration in complex neuroscience setups.
The TriggerBox Plus simplifies trigger synchronization in complex laboratory environments by combining signals from multiple sources into a single, reliable trigger stream. It accepts various inputs ensuring synchronized recording of events from experiment software, MRI scanners, TMS systems, and other devices. It can also function as a virtual parallel port, enabling modern computers without native LPT interfaces to communicate with legacy hardware. Additionally, the TriggerBox Plus streams triggers as LabStreamingLayer (LSL) marker streams over Ethernet or Wi-Fi using the included configuration software. Together with the TriggerBox Extension, it replaces multiple adapters, cables, and interface boxes with one compact solution.
USB Port
USB 2.0 type B configured as a serial port delay < 1ms jitter <1 ms LSL marker generation: < ms Reading inputs via USB: <1 ms.
Input signal
0 VDC to 5 VDC
Output Isgnal
0VDC to 5VDC, depending on the input signal
