SyncBox
Synchronization accessory for concurrent EEG and MRI recordings. Aligns EEG amplifier timing with MRI scanner clocks to improve artifact correction and timing stability in multimodal neuroimaging studies.

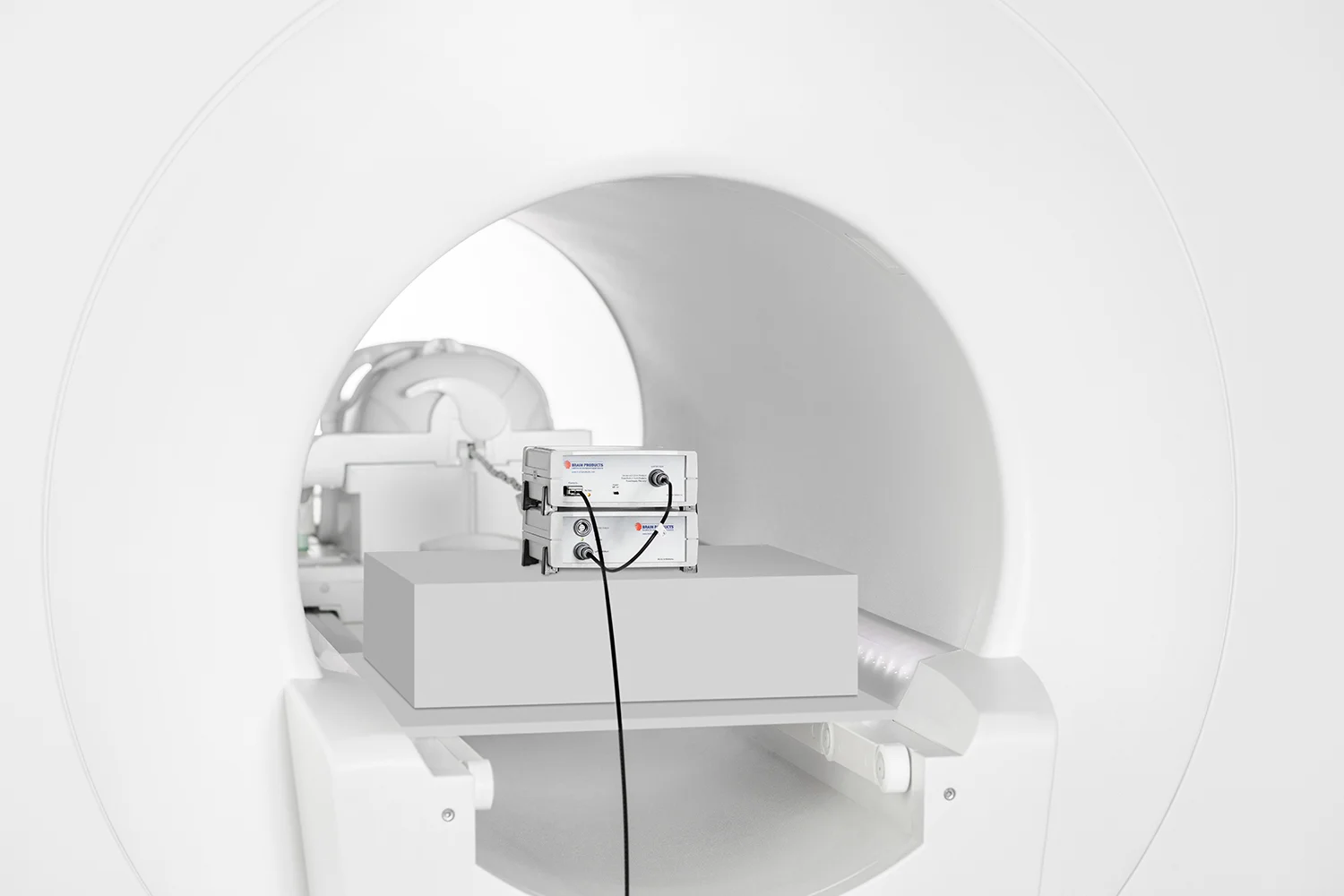

The SyncBox is our must-have solution to boost data quality for concurrent EEG and fMRI recordings. Phase synchronization between the EEG equipment and the MRI scanner results in temporal stability of the EEG acquisition in relation to the switching of the gradients during the MR acquisition. This leads to significant improvement in the quality of gradient artifact correction and therefore the recorded data quality.
Input Voltage
5 V DC
Properties of the input signal
0.4 Vpp to 5 Vpp, hysteresis approx. 150 mV
Frequency of the input signal
Max. 30 MUh
Required input signal shape
Sine or square
