R-Net MR

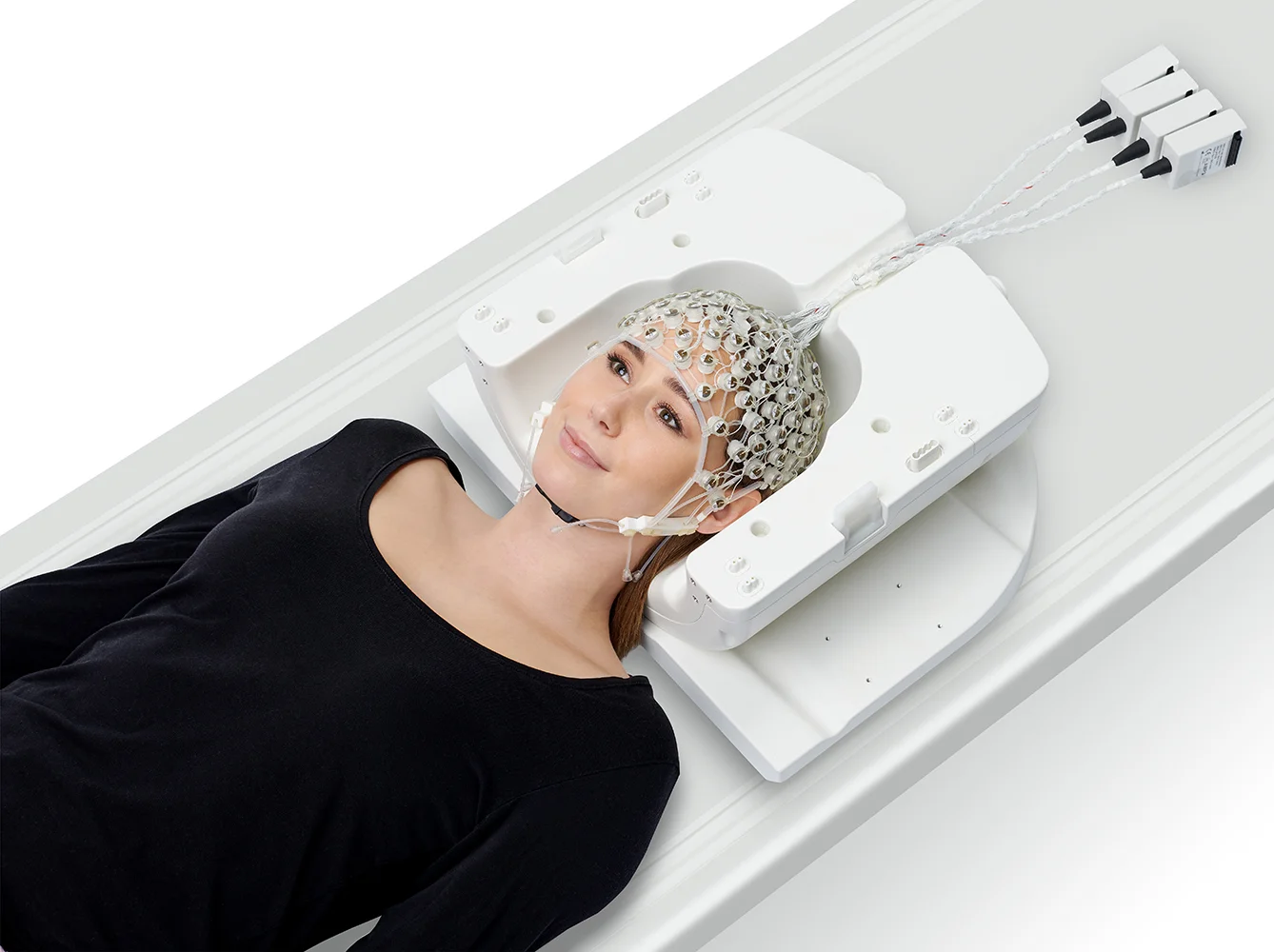

MRI-compatible high-density EEG net system for combined EEG and MRI studies. Supports rapid preparation, broad scalp coverage, and synchronized neuroimaging workflows in research environments.
If your research requires ultra-fast application, minimal invasiveness and maximum comfort, the R-Net MR is the perfect match. The R-Net MR consists of saltwater sponges and passive Ag/AgCl electrodes housed in a durable and flexible silicone structure. The MR version of the R-Net also has current-limiting resistors for safe recordings in the MRI environment and a gel-based ECG electrode
Electrode Type
EEG: passive sponge-based electrode with Ag/AgCl pellet
Dropdown electrode: Multitrode for MR with sintered ag/AgCl sensor
Current limiting resistors
EEG channels: 10 kΩ (5 in electrode and 5 in connection box)
Drop down cannels: 20 kΩ (15 in electrodes and 5 in connection box)
REF: 15 kΩ (10 in electroe and 5 in conncetion box)
GND: 15 kΩ (10 in electrode and in 5 in connection box)
Carbon Wire Loops
4 bipolar loops at left-frontal, right-frontal, left-parietal and righ parietal locations
Suitable for use in MR scanner room
Yes, up to 3 T. MR conditional, i.e. guidelines must be observed
